ASA-PVC Hollow Livestock Board
Characteristics of Red Wave Hollow Livestock Board:Heat insulation, corrosion-resistant and durability.
Red Wave Hollow Livestock Board is a series of products specially introduced by Hongbo company to adapt to the construction of animal husbandry.It is mainly made of rigid PVC substrate and ASA co-extrusion, adding special heat insulation, anti-aging ingredients, using proprietary technology.
1.Heat insulation of Red Wave Hollow Livestock Board
Red Wave Hollow Livestock Board series of heat insulation is better than the traditional asbestos cement tile, color steel plate, single-layer PVC tile.
* Red Wave Hollow Livestock Board has low heat conduction
coefficient, has the heat insulation layer, the infrared ray does not pass through basically.
* The sun-facing surface of Red Wave Hollow Livestock Board can reflect most of the sunshine energy, and the surface temperature is much lower than that of asbestos cement tile, color steel tile, color aluminum tile and PVC tile.
* Red Wave Hollow Livestock Board is a hollow wavy structure, and the air flows with the wavy structure, which has the function of air convection and heat dissipation.
2.Chemical corrosion resistance of Red Wave Hollow Livestock Board
Red Wave Hollow Livestock Board has excellent chemical corrosion resistance, long exposure to H2S, NH3 and other corrosive gases, the product does not change color, not brittle.
Test of ammonia resistance of Red Wave Hollow Livestock Board
The test condition: Ammonia concentration: 3% (30,000 PPM) , the sample was covered with 14% ammonia solution, and the color change was observed under normal temperature. |
|||
Sample name |
Day one |
Day Three |
Day Ten |
Red Wave Hollow Livestock Board |
No change |
No change |
No change |
Color steel plate, color aluminum plate |
No change |
White spots |
White spots |
APVC anti-septic board |
No change |
No change |
No change |
Salt water resistance test of Red Wave Hollow Livestock Board
The experimental conditions were as follows: 20% saline, room temperature immersion for 148h. |
|
Red Wave APVC anti-septic board,Hollow Livestock Board |
No change |
Color steel plate, color aluminum plate |
Obvious corrosion |
Comparison of acid and alkali resistance of common roofing materials
Chemical name |
Red Wave Hollow Livestock Board |
Color steel plate, color aluminum plate |
Red Wave APVC anti-septic board |
Sulfuric acid |
Excellent |
Poor |
Excellent |
Hydrochloric acid |
Excellent |
Poor |
Excellent |
sodium hydroxide |
Excellent |
Poor |
Excellent |
3. The durability of Red Wave Hollow Livestockl Board
The surface of Red Wave Hollow Livestock Board is ASA material with excellent weather resistance. It can be used for a long time in the bad environment such as ammonia. If the use of galvanized steel roof, about 2 years will appear rust and perforation of the phenomenon, usually can not continue to use. In order to extend the service life, can only be coated in the surface of anti-corrosion paint, must be re-coated every two years, the process trouble cost is high.
一、Roof panels
——Use ASA-PVC hollow concealed buckle plate
Layout
Thickness:10mm
Projection width:816mm
Practical width:770mm
Color:White+Blue
* It is suggested to use white in animal husbandry with the lowest temperature.
* With special aluminum alloy trapezoidal fixture,photovoltaic panel can be installed synchronously.
* The utility model has the advantages of convenient combination of photovoltaic bracket accessories, labor-saving on-site installation, greatly reducing the construction cost and improving the engineering efficiency.

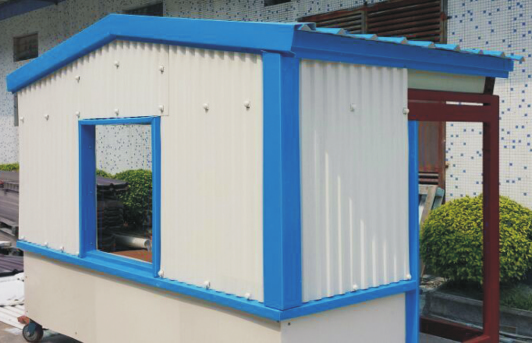

二、Exterior wall panel, ceiling
——Use Red Wave brand PVC hidden buckle plate
Layout
Thickness:1.7mm
Projection width:540mm
Practical width:500mm
Color:White
The biggest feature
1.Hidden button structure, installation screws are not exposed, to avoid the screw“Rust” flow“Rust mark”.
2.Used for external wall without waterproof accessories and tapping screw length only need St6.3X25mm, more cost-saving.
3.Cascading, installation of seamless connection, more aesthetic and three-dimensional sense.
4.Used for internal and external walls, horizontal, vertical arbitrary arrangement, and installation of complete accessories, high-end atmospheric grade.
5.Used for the ceiling, narrow width, replacement installation, because the hidden button structure sealing effect is better.
Scope of application
Industrial factory, Villas, Homes, Animal husbandry factory and other external walls,
With waterproof and decorative functions in one of the external wall panels!
三、Common accessories
——Common accessories for PVC blind fastener
Part name |
Material |
Introduction |
Section drawing of the part |
Start Bar |
PVC |
Used for the wall, waist line, window holes and other materials above or the intersection of the first ASA-PVC Buckle external wall panel installation and fixation. |
|
Receipt |
PVC |
Commonly used under the cornice, wall, window holes, and the last piece of ASA-PVC Buckle under the external hanging wall plate installation and fixation. |
|
Connect left and right |
PVC |
Used for the horizontal connection of PVC buckle external wall board, as two pieces of PVC buckle external wall board port retracting and edge flooding treatment use. |
|
Outside Corner |
PVC |
Used in the corner of the wall, as a PVC buckle outside hanging wall panels corner flooding use. |
*According to the actual project custom-made different specifications of bending installation accessories,such as: cornice sealing, gable flooding, corner edge, window hole edge, door hole edge and so on.
Good products require perfect accessories
——Redwave developed patented accessories
RedWave Hollow Livestock Board accessories series
一、ASA connecting fastener 二、Hexagonal self-reaming anti-corrosion screws
The advantages of hexagonal self-reaming anti-corrosion screws:
This product used the alloy coating treatment, 1000 hours neutral salt spray test intact.
1. High installation efficiency: when the screw is fixed, it integrates drilling and reaming action to improve installation efficiency.
2. When the reaming quantity reaches 4mm, the tile has enough moving space, and the screw will not break because of the extrusion of the tile.
3. After the expansion of the screw hole, the tile surface"Tick-tock" phenomenon caused by thermal expansion and cold contraction is avoided.Use Requirements: must be used with Redwave special one-piece waterproof solid seal.
Models:ST 6.3x90
四、Installation tools
Drill |
|
Metal Electric Scissors |
|
Angle Grinder |
Cable Box |
|
Tape measure, yardstick |
|
Gloves |
Fixing screws recommended:
Expansion screws (masonry wall) Cross recessed drill tail tapping screw (metal structure)

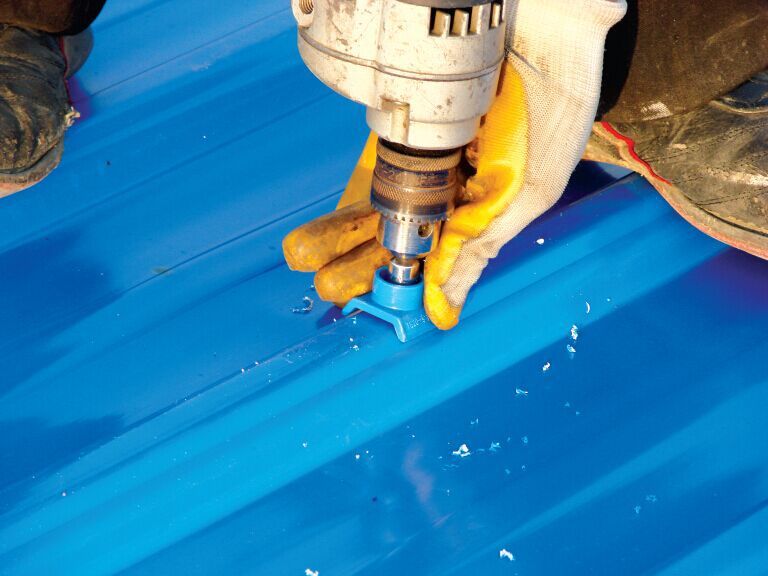

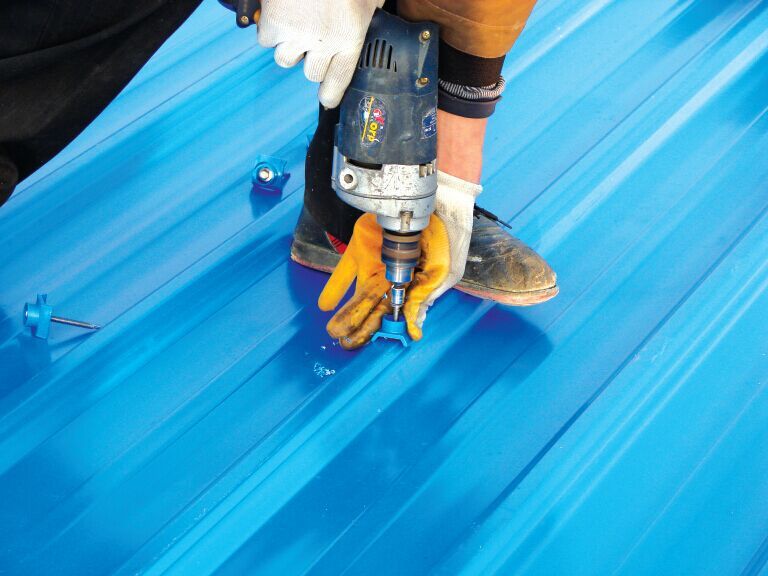

Guide for construction and installation of Red Wave Livestock Board
*Hole diameter should be larger than self-tapping screw diameter of about 2mm, hole should be smooth.
*Cornice head part width: livestock wave board, to be in 70 ~ 100 mm within the construction.
*Steel skeleton should be well anticorrosion measures, as far as possible to avoid the use of general iron pipe.
* RedWave brand C-type plastic steel purlins are recommended.
*The span of plate purlins in hollow livestock board: the span about 1200mm in south area is the standard, and ≤1000mm in north area.
Ceiling panel installation
