Iron-plastic composite panel/Nano heat insulation panel
- Description
- Product introduction on the left
-
Iron-plastic composite panels/nano thermal insulation panels use hot-dip aluminized zinc as the substrate, with a high-temperature hot-pressing process used on the surface to composite a high-molecular weather-resistant color film. A high-molecular corrosion-resistant protective film is compounded on the bottom surface of the substrate. The product features weather resistance, corrosion resistance, sound insulation, and a variety of colors.
Iron-plastic composite panels/nano thermal insulation panels have excellent weather resistance and corrosion resistance, sound insulation, and a variety of colors.
Performance Advantages of Iron-Plastic Composite Panels/Nano Thermal Insulation Panels
Good Corrosion Resistance
The surface and bottom layer can withstand various acid-base substances such as hydrochloric acid, sulfuric acid, nitric acid, hydrofluoric acid, sodium hydroxide, and ammonia water.
Excellent Weather Resistance
The surface is made by high-temperature composite processing of imported NFC special weather-resistant film, weather-resistant plastic layer, and high-polymer layer. The surface film thickness is ≥80 microns, and the outdoor service life is ≥10 years.

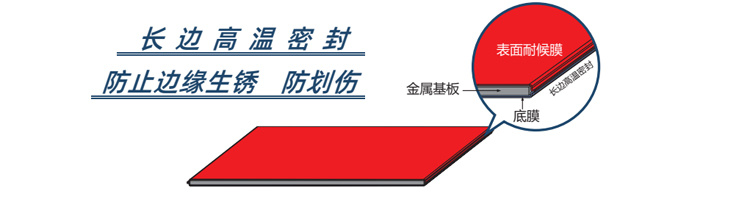

The bottom layer uses a special corrosion-resistant steel plate film, and the surface film and bottom film are tightly sealed in the longitudinal direction, preventing rust and corrosion in the length direction of the plate, and also preventing scratches during use.
Good Post-forming Processability
Excellent ductility, not easy to produce internal stress, can meet various resin tile-type pressing and irregular bending processing.
Good Thermal Insulation
Nano thermal insulation panels also have good thermal insulation properties, reducing the indoor temperature by 3-5 degrees compared to ordinary panels.Iron-Plastic Composite Panel/Nano Thermal Insulation Panel Product Specification
Width: 1000mm, 1200mm, 1250mm
Iron-plastic composite panel length: approximately 2000/meter roll

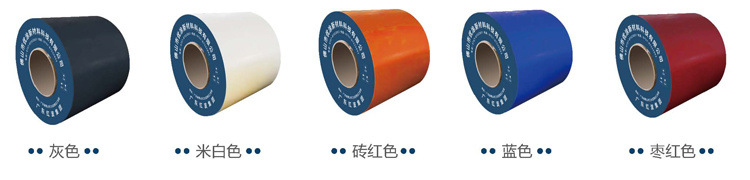

Conventional substrate thickness: 0.35mm, 0.4mm, 0.45mm, 0.5mm, 0.6mmResin tile special board --- Color: Iron gray, brick red, jujube red Surface: Smooth
Industrial plant special board -- Color: Iron gray, beige, brick red, blue Surface: SmoothApplication Range
Iron-plastic composite panels/nano thermal insulation panels are suitable for outdoor buildings and are often used to process outdoor metal resin tiles, steel structure roof tiles, stacked exterior wall panels, roof flashing accessories, etc.
When used in corrosive industries, using a hidden buckle tile type, the lifespan is increased by more than 30%.
