Solar photovoltaic tile
Patented photovoltaic integrated tile products, with built-in "rails", can be formed using color-coated steel plates, aluminum-zinc-magnesium plates, zinc-aluminum-magnesium plates, and fluoroplastic plates (for corrosion-resistant factory use). Compared to traditional 760W and 820W angular ridge types, it has the following advantages.
- Description
- Product introduction on the left
-

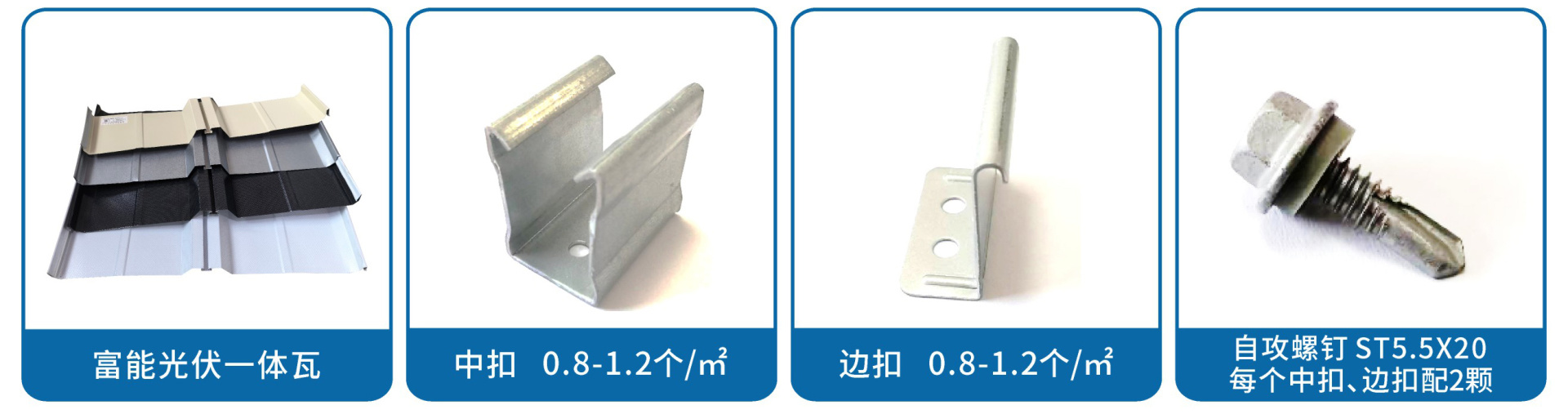

Funeng Photovoltaic Integrated Tile
Funeng photovoltaic integrated tile patented products, with built-in "rails", can be formed using: color-coated steel, aluminum zinc magnesium plate, zinc aluminum magnesium plate, fluoroplastic plate (for corrosion-resistant factories). Compared to traditional Angle驰760W and Angle驰820W models, it has the following advantages.
(1) Funeng tile installation is convenient and fast, and installation can be completed with "one press and one buckle".

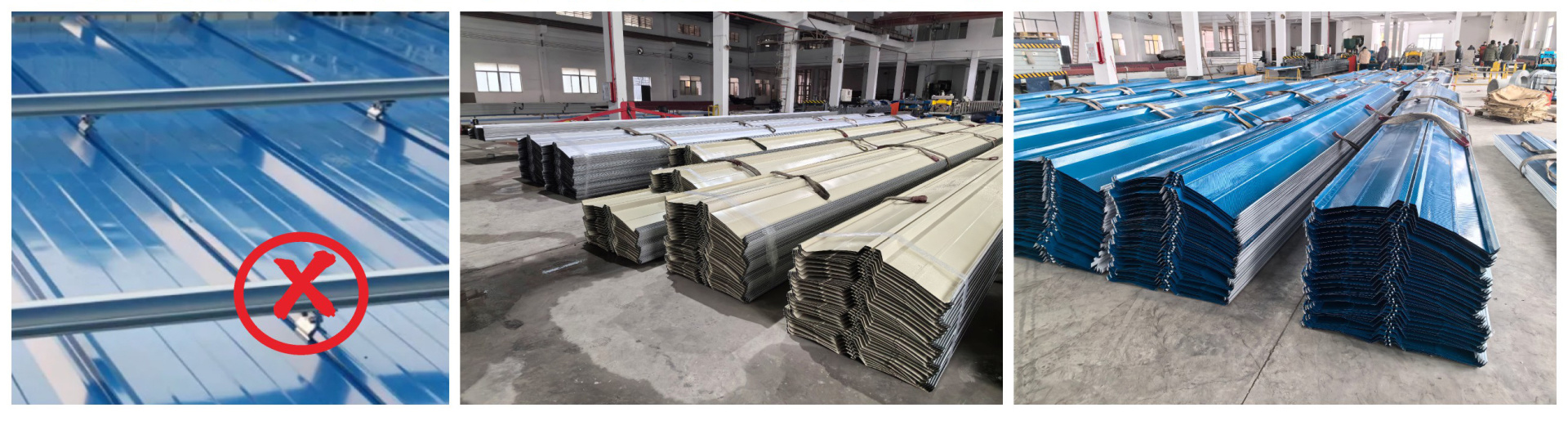

(2) Installation of photovoltaic panels for Angle驰760W and Angle驰820W models requires fixtures and rails, costing 0.15 yuan/watt, while Funeng tiles have built-in "rails", eliminating the need for "fixtures" and "rails", saving costs of over 100,000 yuan per megawatt.

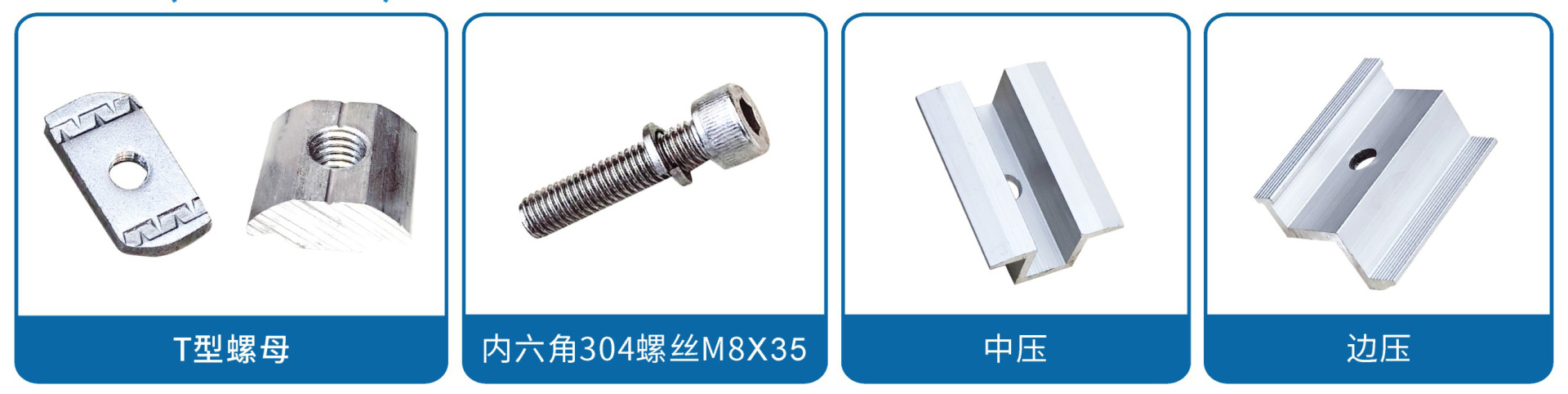

(3) Higher photovoltaic panel installation efficiency, only requires T-type nuts, M8*35 hexagon socket screws, middle pressure, and side pressure, greatly improving installation efficiency. (Photovoltaic panels are laid horizontally)

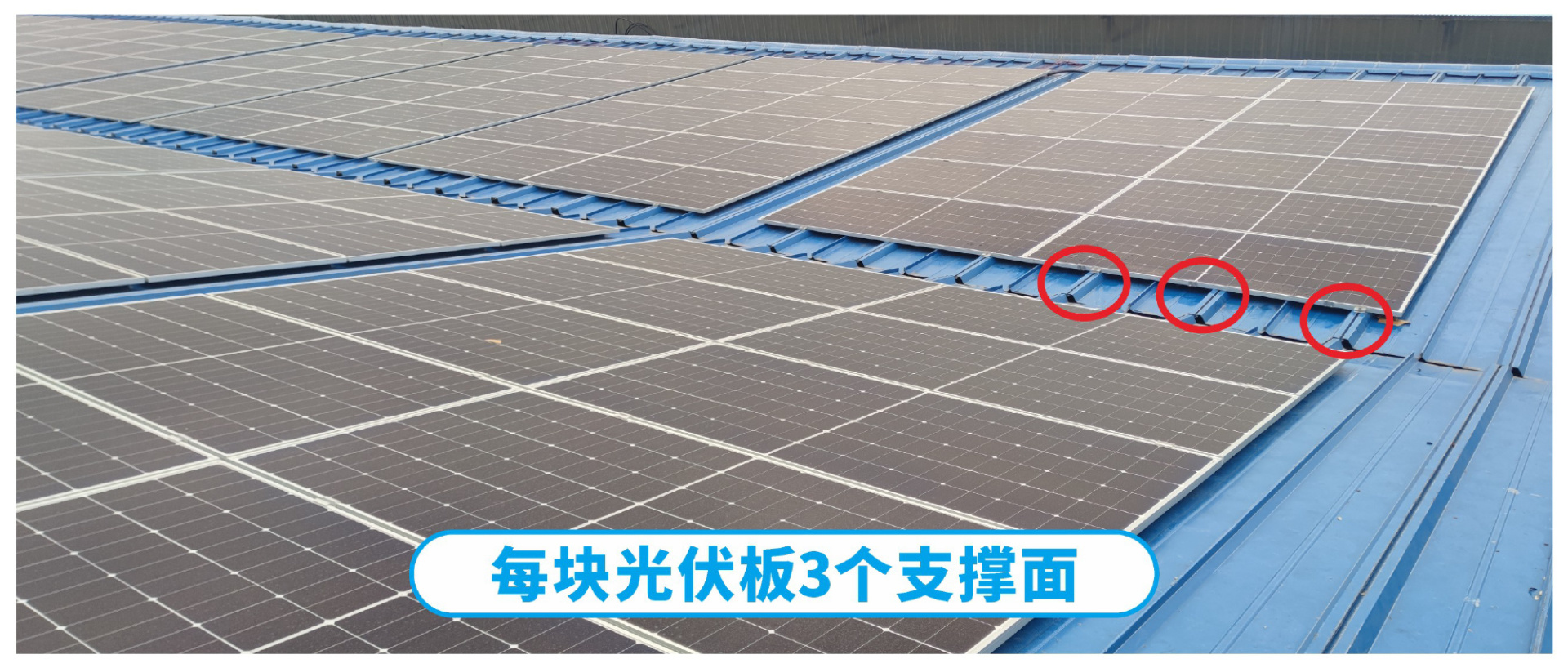

(4) Special "dovetail slot" design, greater rigidity, and larger contact area with the photovoltaic panel support surface. Each photovoltaic panel is supported by 3 "dovetail slots", eliminating any risk of deformation of the photovoltaic panel. One photovoltaic panel is installed every three tiles, and the roof can achieve full coverage of photovoltaic panels.

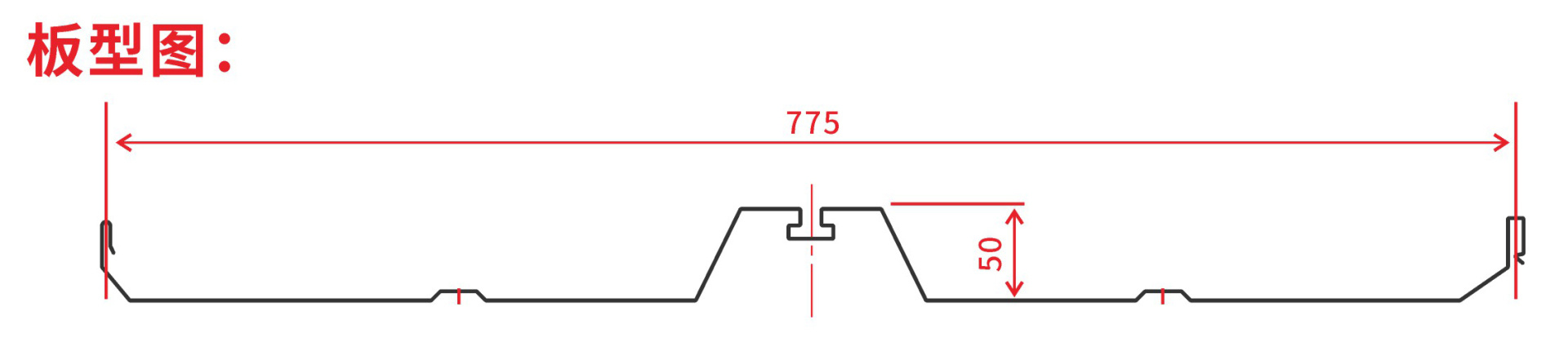

Product Specification:
Services Provided:
(1) Provide preferential supply support for national standard compliant 150g aluminum magnesium zinc, 275g zinc aluminum magnesium, color-coated steel, and fluoroplastic plates (for corrosion-resistant factories);
(2) Provide various roof tile technical support and photovoltaic installation solutions;
(3) The company provides on-site forming services nationwide;
(4) Installation services are provided.
Welcome to visit our company. The factory covers an area of 120 mu, and the roof has been fully equipped with photovoltaics. Funeng tiles, APVC photovoltaic tiles,
ASA-PVC hollow tiles, sandwich panels and other board types can all be seen in the actual sample projects.
Note: Please consult the business manager for Funeng tile installation instructions and cost-benefit analysis
