ASA-PVC Hollow Livestock Board

Details

BIPV-ASA hollow photovoltaic integrated tile

Details

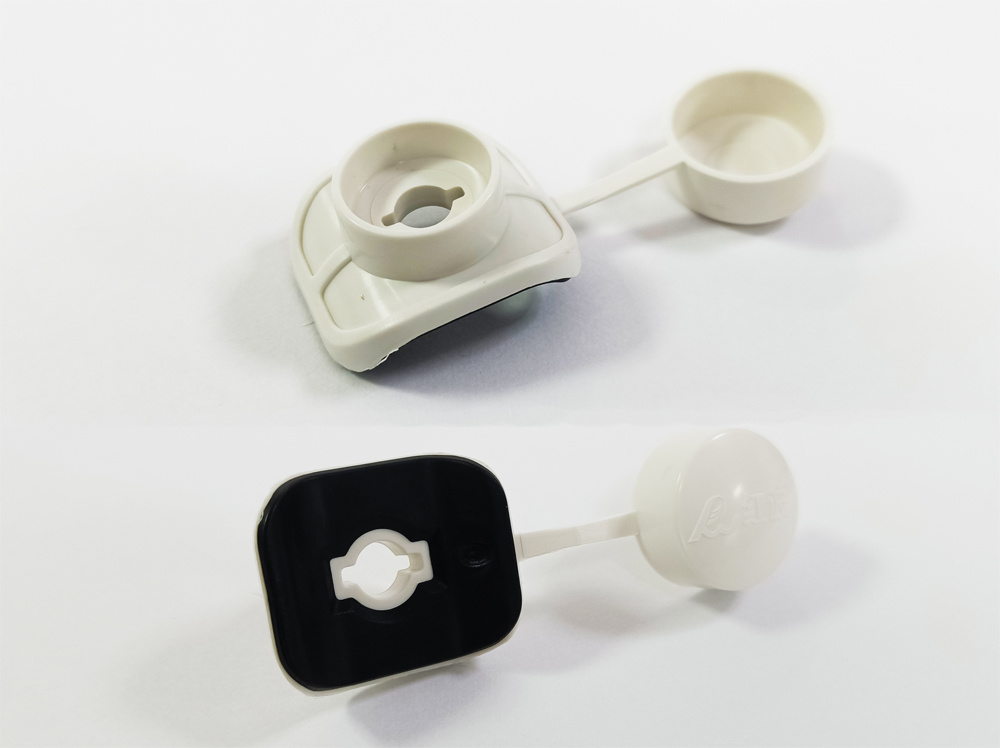

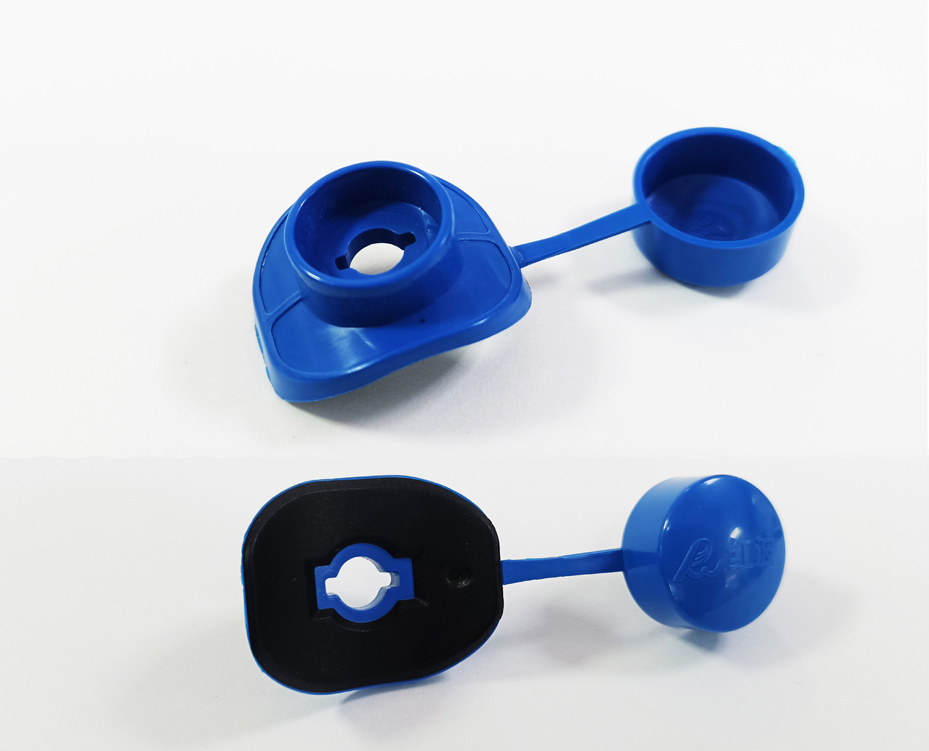

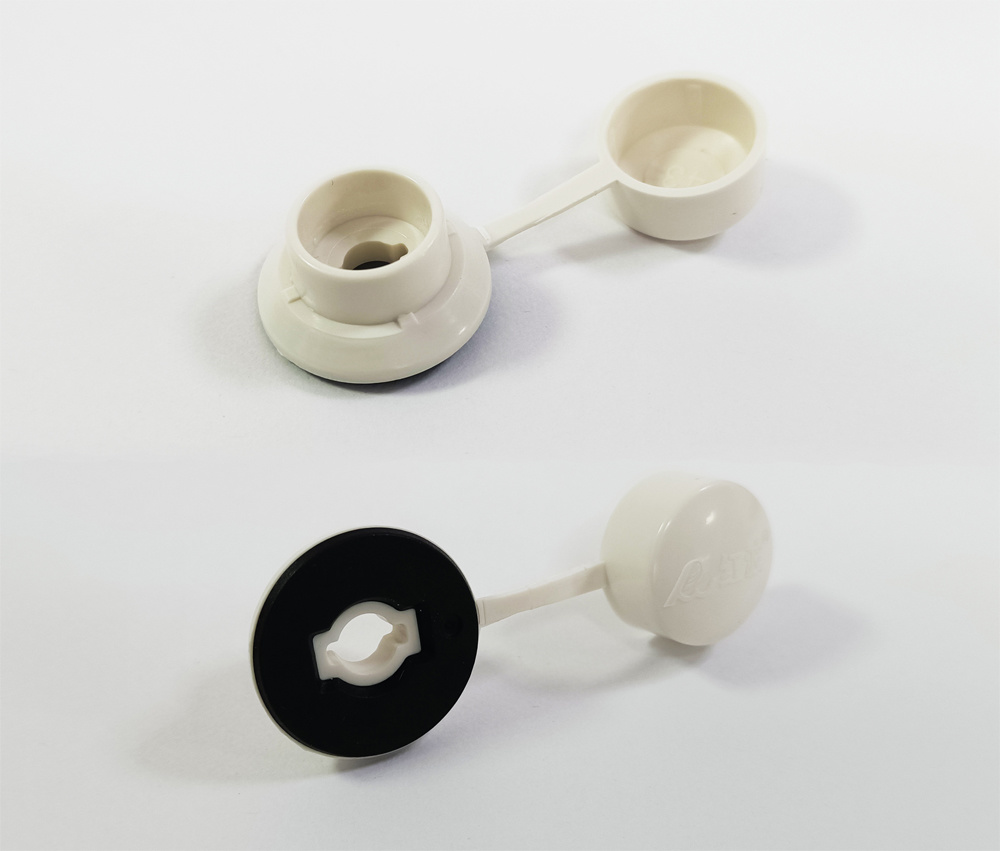

Accessories

Product positioning: It transcends modern fashion, pursues exotic customs and interprets a new life model. The product is made of ASA resin with high weather resistance. The laminated resin tile is made by one-time processing by three-layer co extrusion (a/b/c) technology. The surface layer is ASA layer, the middle layer is skeleton layer and the bottom layer is wear-resistant layer.

Details

Fitting

The resin green tile is processed by three-layer co extrusion (A / B / C) technology at one time; The surface layer is ASA layer, the middle layer is skeleton layer, and the bottom layer is wear-resistant layer.

Details

Synthetic Resin Roof Tile

Product positioning: Modern original ecology, the pursuit of the combination of Chinese and western, open a new era of colorful roof. The product is made of high weather resistant engineering resin ASA. The synthetic resin tile is processed by three-layer co extrusion (A / B / C) technology at one time. The surface layer is ASA layer, the middle layer is skeleton layer, and the bottom layer is wear-resistant layer. Typical properties of synthetic resin tile: No discoloration, sound insulation, heat insulation and corrosion resistance for ten years.

Details

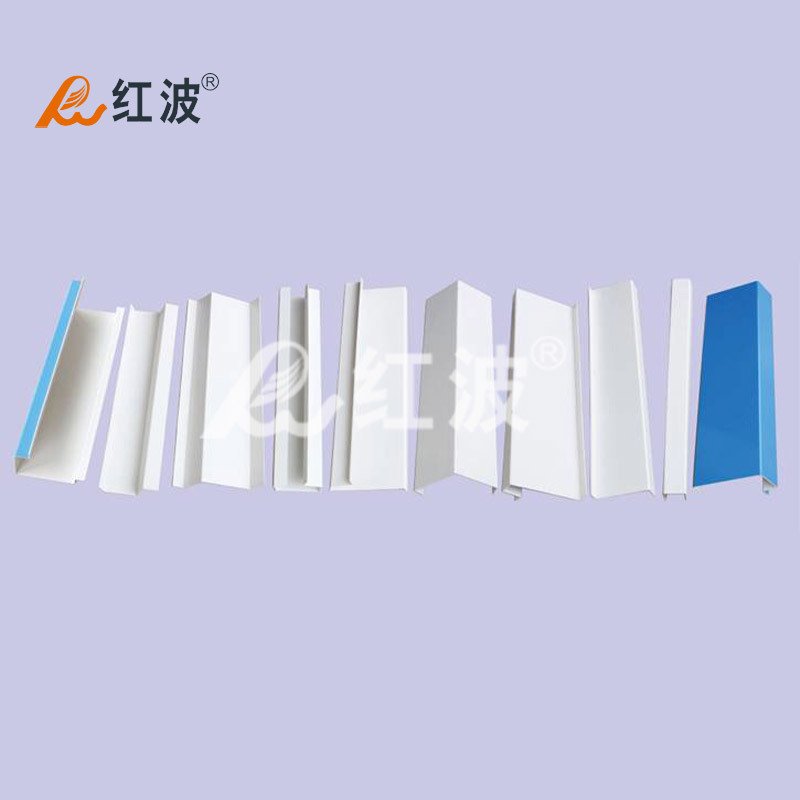

Purlin And Gutter

This product is made of PVC resin (abbreviated as PVC) as the main raw material, supplemented by other chemical raw materials, through scientific proportion and technology. There are two types: general type and environmental protection type. Among them, environmental protection products have passed Rosh six, PASH polycyclic aromatic hydrocarbons, svhc38 and other tests. 　　 1. When the thickness of corrugated tile is less than or equal to 1.3mm, it is recommended that the purlin span of inclined roof should be less than or equal to 600mm, while that of arched roof should be less than or equal to 800mm; 2. For corrugated tile with thickness of 1.8mm ≥ 1.3mm, it is recommended that the purlin span of inclined roof should be ≤ 800mm, while that of circular arch roof should be ≤ 900mm; 3. For 3.0 mm ≥ 1.8 mm corrugated tile, it is recommended that the purlin span of inclined roof should be no more than 900 mm, while that of arched roof should be no more than 1000 mm; 4. The transverse overlapping of medium wave, wavelet and small ladder wave must be two waves, and the longitudinal overlapping length shall be more than 300 mm 5. If the self tapping screw is used for fixing, the hole must be drilled in advance. The diameter of the hole must be 2-3mm larger than that of the fixing screw. The diameter of the self tapping screw must be 6.0 mm larger than that of the fixing screw. The thicker the tile is, the higher the requirement for the self tapping screw is (it is recommended to use the special "self expanding screw" for fixing). Note: the span of sandalwood is related to the temperature of the workshop. If the temperature of the workshop is higher, the span of sandalwood should be smaller, otherwise it is easy to cause tile deformation.

Details

FRP Roofing Sheet

The product is made of PVC resin as the main raw material, supplemented by UV anti ultraviolet agent and other weather resistant chemical raw materials. 　　 1. When the thickness of corrugated tile is less than or equal to 1.3mm, it is recommended that the purlin span of inclined roof should be less than or equal to 600mm, while that of arched roof should be less than or equal to 800mm; 2. For corrugated tile with thickness of 1.8mm ≥ 1.3mm, it is recommended that the purlin span of inclined roof should be ≤ 800mm, while that of circular arch roof should be ≤ 900mm; 3. For 3.0 mm ≥ 1.8 mm corrugated tile, it is recommended that the purlin span of inclined roof should be no more than 900 mm, while that of arched roof should be no more than 1000 mm; 4. The transverse overlapping of medium wave, wavelet and small ladder wave must be two waves, and the longitudinal overlapping length shall be more than 300 mm 5. If the self tapping screw is used for fixing, the hole must be drilled in advance. The diameter of the hole must be 2-3mm larger than that of the fixing screw. The diameter of the self tapping screw must be 6.0 mm larger than that of the fixing screw. The thicker the tile is, the higher the requirement for the self tapping screw is (it is recommended to use the special "self expanding screw" for fixing). Note: the span of sandalwood is related to the temperature of the workshop. If the temperature of the workshop is higher, the span of sandalwood should be smaller, otherwise it is easy to cause tile deformation.

Details

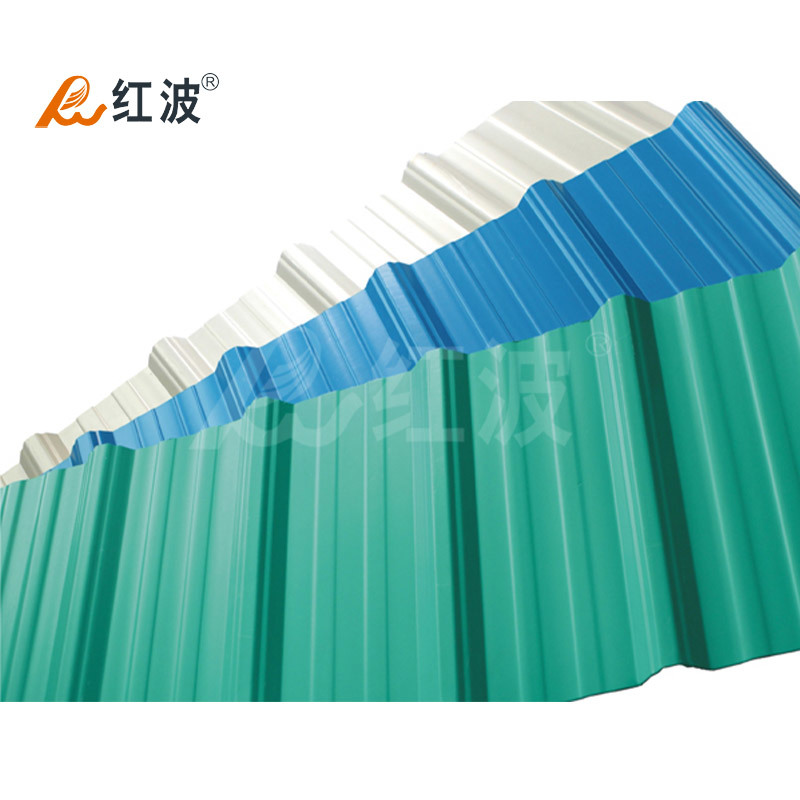

UPVC Roofing Sheet

Details

ASAPVC Roofing Sheet

The product is made of modified PVC, which is a whole body material and has the characteristics of micro light transmission. 　 1. When the thickness of corrugated tile is less than or equal to 1.3mm, it is recommended that the purlin span of inclined roof should be less than or equal to 600mm, while that of arched roof should be less than or equal to 800mm; 2. For corrugated tile with thickness of 1.8mm ≥ 1.3mm, it is recommended that the purlin span of inclined roof should be ≤ 800mm, while that of circular arch roof should be ≤ 900mm; 3. For 3.0 mm ≥ 1.8 mm corrugated tile, it is recommended that the purlin span of inclined roof should be no more than 900 mm, while that of arched roof should be no more than 1000 mm; 4. The transverse overlapping of medium wave, wavelet and small ladder wave must be two waves, and the longitudinal overlapping length shall be more than 300 mm 5. If the self tapping screw is used for fixing, the hole must be drilled in advance. The diameter of the hole must be 2-3mm larger than that of the fixing screw. The diameter of the self tapping screw must be 6.0 mm larger than that of the fixing screw. The thicker the tile is, the higher the requirement for the self tapping screw is (it is recommended to use the special "self expanding screw" for fixing). Note: the span of sandalwood is related to the temperature of the workshop. If the temperature of the workshop is higher, the span of sandalwood should be smaller, otherwise it is easy to cause tile deformation.

Details

Founded in 1988, Guangdong Hongbo Building Materials Technology Co., Ltd. is a national brand manufacturer of PVC roofing materials in China.
