PVC glossy tile
- Description
- Product introduction on the left
-
Product Introduction
This product is mainly made of polyvinyl chloride resin (PVC), with UV anti-ultraviolet agents and other weather-resistant chemical raw materials, extruded.
Installation Instructions
1. For corrugated tiles with thickness ≤1.3mm, the recommended purlin span for sloped roofs is ≤600mm, while for arched roofs, it is ≤800mm;
2. For corrugated tiles with thickness 1.8mm≥thickness>1.3mm, the recommended purlin span for sloped roofs is ≤800mm, while for arched roofs, it is ≤900mm;
3. For corrugated tiles with thickness 3.0mm≥thickness>1.8mm, the recommended purlin span for sloped roofs is ≤900mm, while for arched roofs, it is ≤1000mm;
4. Medium wave, small wave, and small ladder wave must overlap 2 waves in the transverse direction, and the longitudinal overlap length must be >300mm;
5. If self-tapping screws are used for fixing, pre-drilling is required. The diameter of the drilled hole must be 2-3mm larger than the diameter of the fixing screw. The diameter of the self-tapping screw must be greater than 6.0MM, and the thicker the tile, the higher the requirement for the self-tapping screw (it is recommended to use a special "self-expanding screw" for fixing).
Note: The span of the purlin is related to the temperature of the workshop. If the temperature of the workshop is higher, the span of the purlin should be smaller, otherwise it is easy to cause tile deformation.
Product Parameters
Thickness: 0.8mm, 1.0mm, 1.3mm, 1.5mm, 2.0mm
Color: White
Length: Customized according to customer requirements

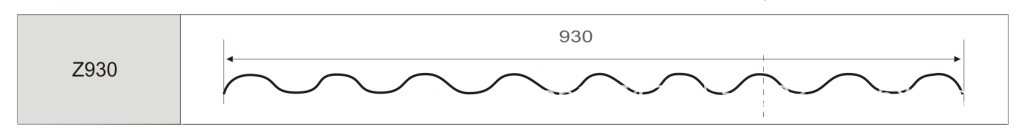

Plate type: Z930
Product Features
This product has a particularly high surface finish, fully meeting European and American environmental protection standards and quality grade requirements. The density is only 1.45, making it a substitute for high-quality European and American PVC tiles. The product has good corrosion resistance, weather resistance, bright colors, and is environmentally friendly and healthy.
Used for livestock roofs, the indoor temperature is 2-3 degrees lower than that of ordinary PVC corrugated tiles, especially suitable for pig and poultry farming, and the output will increase by more than 5%.
Scope of Application

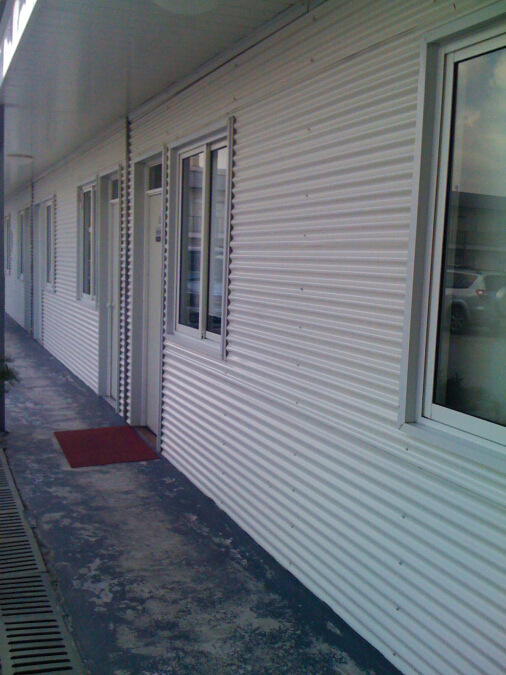

Application Cases
-
Made from polyvinyl chloride resin (PVC) as the main raw material, with UV absorbers and other weather-resistant chemical raw materials, extruded.
