Railless Funen photovoltaic integrated tile 2.0 launched

Since the birth of Funen photovoltaic integrated tiles, it has received unanimous praise from numerous customers for its excellent performance and innovative design. In order to meet market demand and continuously improve product performance, YouTu Company continuously optimizes and upgrades Funen photovoltaic integrated tiles.

Today, the railless Funen photovoltaic integrated tile 2.0 version is officially launched.

Allow customers to use higher quality products.

1

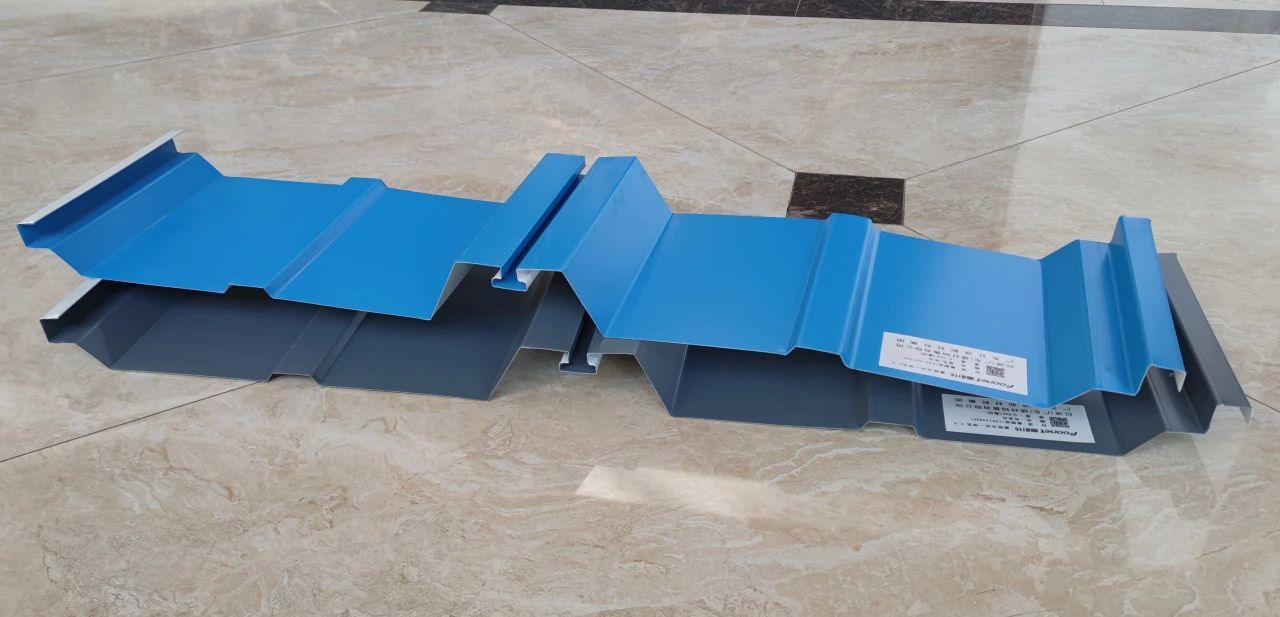

Railless Funen photovoltaic integrated tile

2.0PK1.0

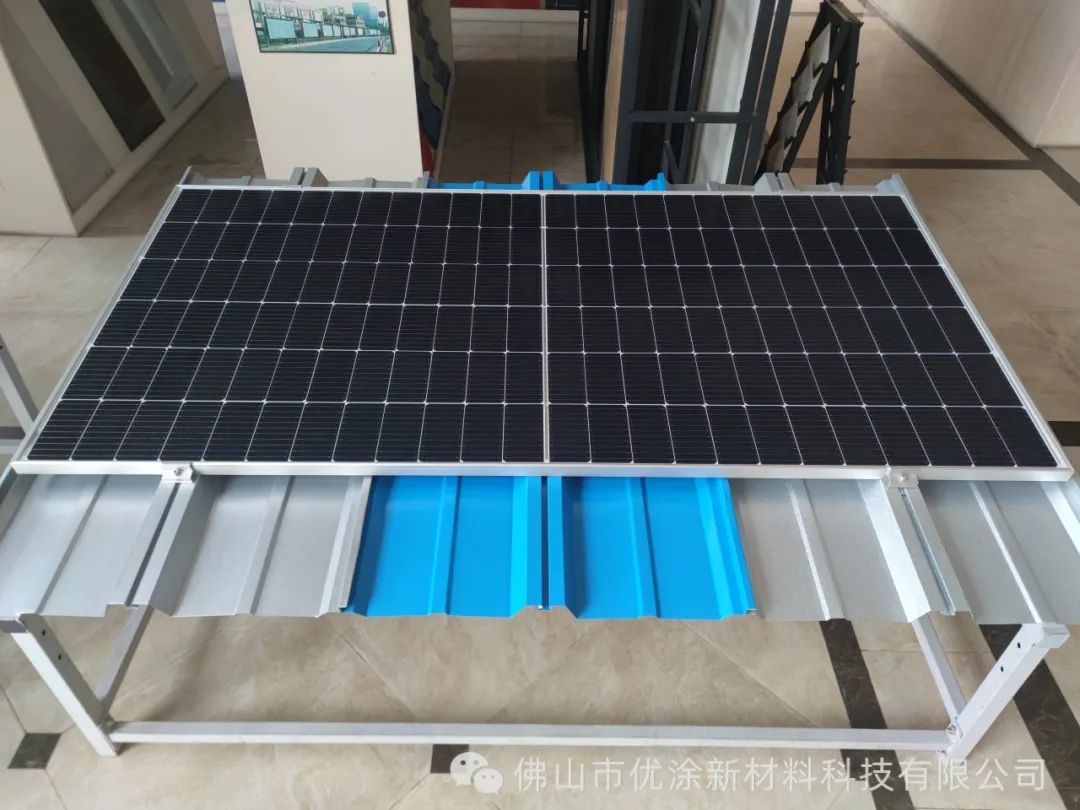

Railless Funen photovoltaic integrated tile 2.0

Combine this installation method to build the factory

Can withstand a maximum typhoon of level 12!

The performance optimization upgrade and new tile design of "2.0" give "2.0" three major advantages compared to "1.0".

01.The swallowtail groove size is more regular, and the pulling force is greater!

02.The lap joint structure is upgraded to 180 degrees or 360 degrees locking edge, reducing the requirements for the flatness of the purlin!

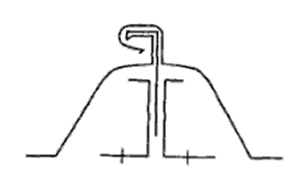

180-degree bite-type locking edge diagram

360-degree bite-type locking edge diagram

03.Equipped with T-nut sliders of different specifications to meet different pulling force requirements!

2

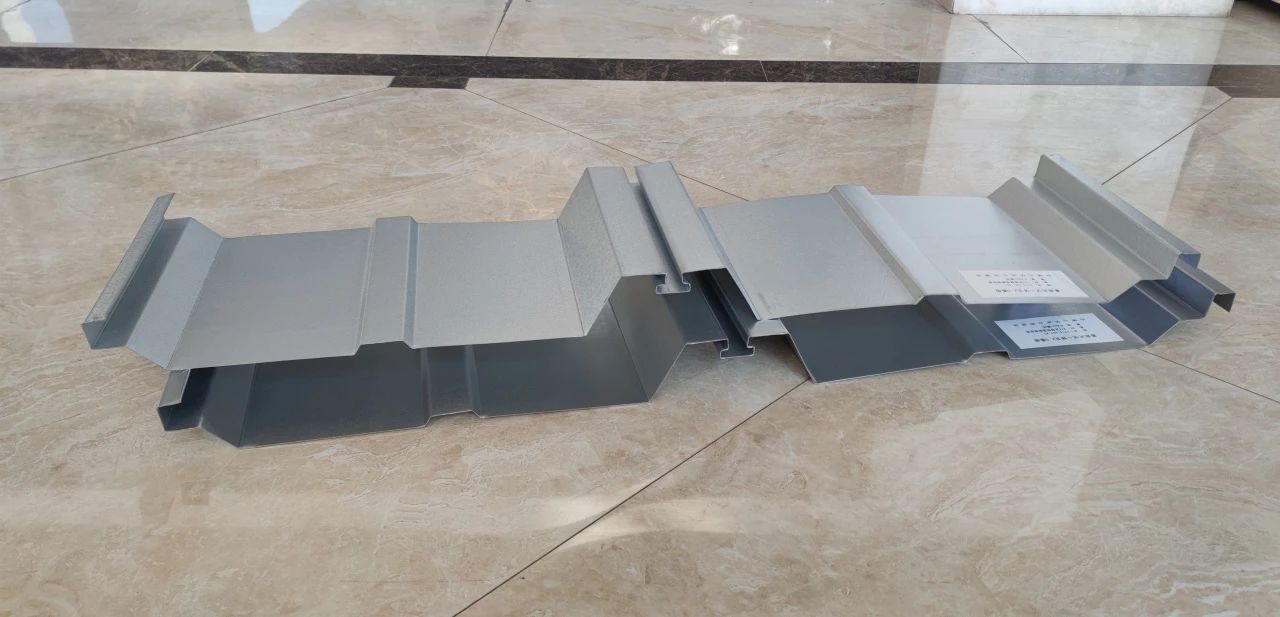

Railless Funen photovoltaic integrated tile 2.0

Performance Advantages

Railless Funen photovoltaic integrated tile 2.0 Patented Products, with built-in rails, mainly used for supporting steel structure roof photovoltaic installation, can achieve the full paving effect of BIPV. The forming materials can be: color-coated plates, aluminum-zinc-magnesium plates, zinc-aluminum-magnesium plates, Fulu plates (for corrosion-resistant factories), etc. Compared with traditional corner-chisel 760 tile models and corner-chisel 820 tile models, it has three major advantages!

1.Cost-effective

Corner chisel 760 tile model and corner chisel 820 tile model installation of photovoltaic panels require fixtures and rails, costing 0.15 yuan/watt, while Funen tile has built-in "rails",Can save 100,000+ yuan per megawatt!

2.Efficient Installation

Higher efficiency in installing photovoltaic panels, only T-type slider nuts (equipped with different models of T-type slider nuts, maximum pulling force can reach more than 200kg), M8*30 hex screws, medium pressure/side pressure are needed,Installation efficiency can be increased by more than 30%!

3.Special design

Special "swallowtail groove" designGreater rigidity, larger contact support area with photovoltaic panel brackets, each photovoltaic panel has 3 "swallowtail grooves" support, the photovoltaic panel is more stable and has no deformation risk, every three tiles install one photovoltaic panel, the roof can achieve full paving photovoltaic panels.

In the future, railless Funen photovoltaic integrated tiles will be applied in more fields to contribute to the development of green energy.

3

Customer Service

(1) Provide favorable supply support for national standard 150g aluminum magnesium zinc, 275g zinc aluminum magnesium, color-coated plates, fluoroplastic plates (corrosion-resistant factories), etc.;

(2) Provide various roof tile technical support and photovoltaic installation solutions;

(3) The company provides on-site forming services throughout the country;

(4) Provide installation services.

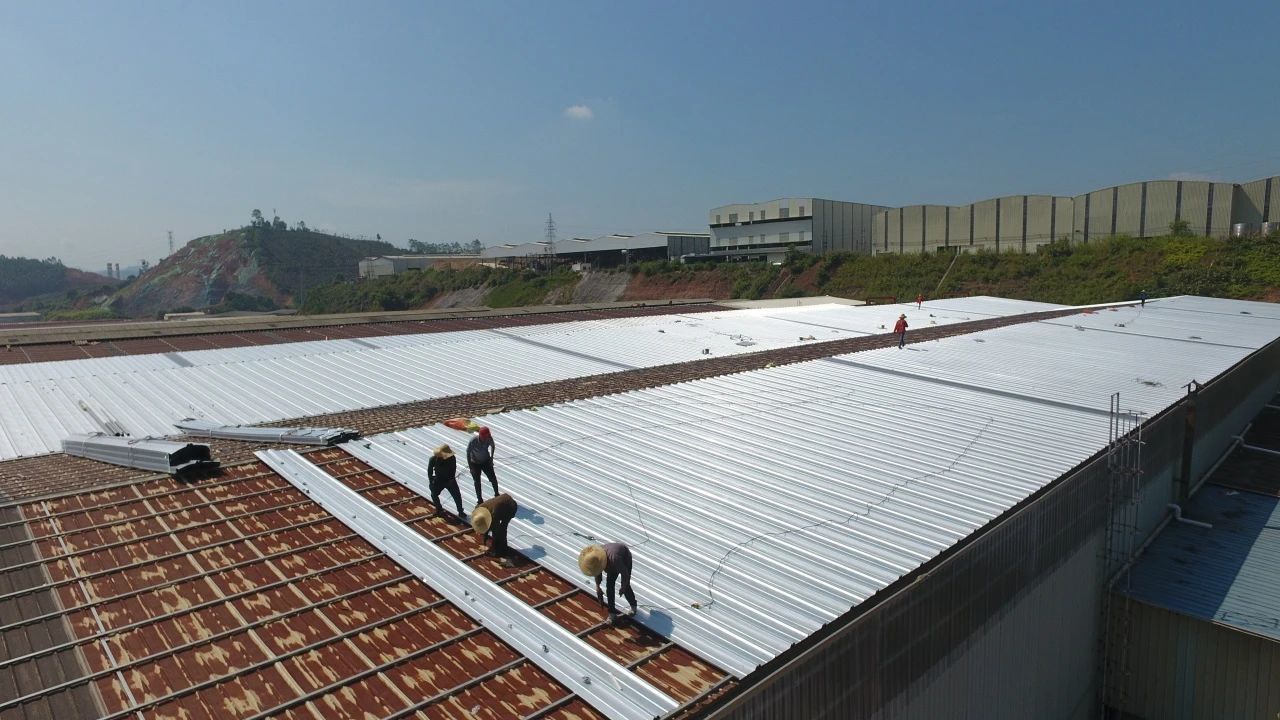

Welcome to our company for investigation. The factory covers an area of 120 mu, and the roof has been fully installed with photovoltaics. Sample Projects of Funen tiles, APVC photovoltaic tiles ASA-PVC hollow tiles, and sandwich panels can all be seen.
